- Brand Name: UYANGG
- Origin: Mainland China
- DIY Supplies: ELECTRICAL
- AC Voltage: 600.0mV/9.999V/99.99V/999.9V
- Display Type: Digital display
- DC Voltage: 600.0mV/9.999V/99.99V/999.9V
- AC Current: 999.9mA/10A
- Measuring Resistance Range: 999.9/9.999k/99.99k/ 999.9k/9.999M/99.99M
- Certification: CE
- DC Current: 999.9mA/10A
- Measuring Capacitance Range: 9.999nF999.9nF/9.999uF/ 99.99uF/9.999mF/99.99mF
- Operating Mode: automatic
- Model Number: SZ02 Multimeter
- Is Smart Device: No
- Measuring Inductance Range: 100Hz/1000Hz
- Dimensions: 13.80 *7.40 *6.60 CM
- Operating Temperature: 0 – 40 ℃
- NCV: Yes
- AC/DC Voltage: Yes
- AC/DC Current: Yes
- Resistance: Yes
- Temperature: Yes
- Zero fire line: Yes,Yes
- diode: Yes
- Hz: Yes
- data retention: Yes
- Display(LCD): 9999 Counts
Description:;
*1. Automatic selection of measuring function and range.
*2. Full range oveload protection.
*3. Max. display value: SZ01 6000 digits/SZ02 9999 digits
*4. Automatic shut down time: 15 minutes
*5. Sampling time: about 3 times/second
*6. Power supply: 2*1.5V AAA Battery (Not included)
SZ01: The max voltage between the measuring end and the ground is 600V DC or 600V AC.
SZ02: The max voltage between the measuring end and the ground is 1000V DC or 750V AC.
The instrument specifies one year as a cycle, and shall be re-calibrated under 18℃~28℃, with relative humidity less than 75%.

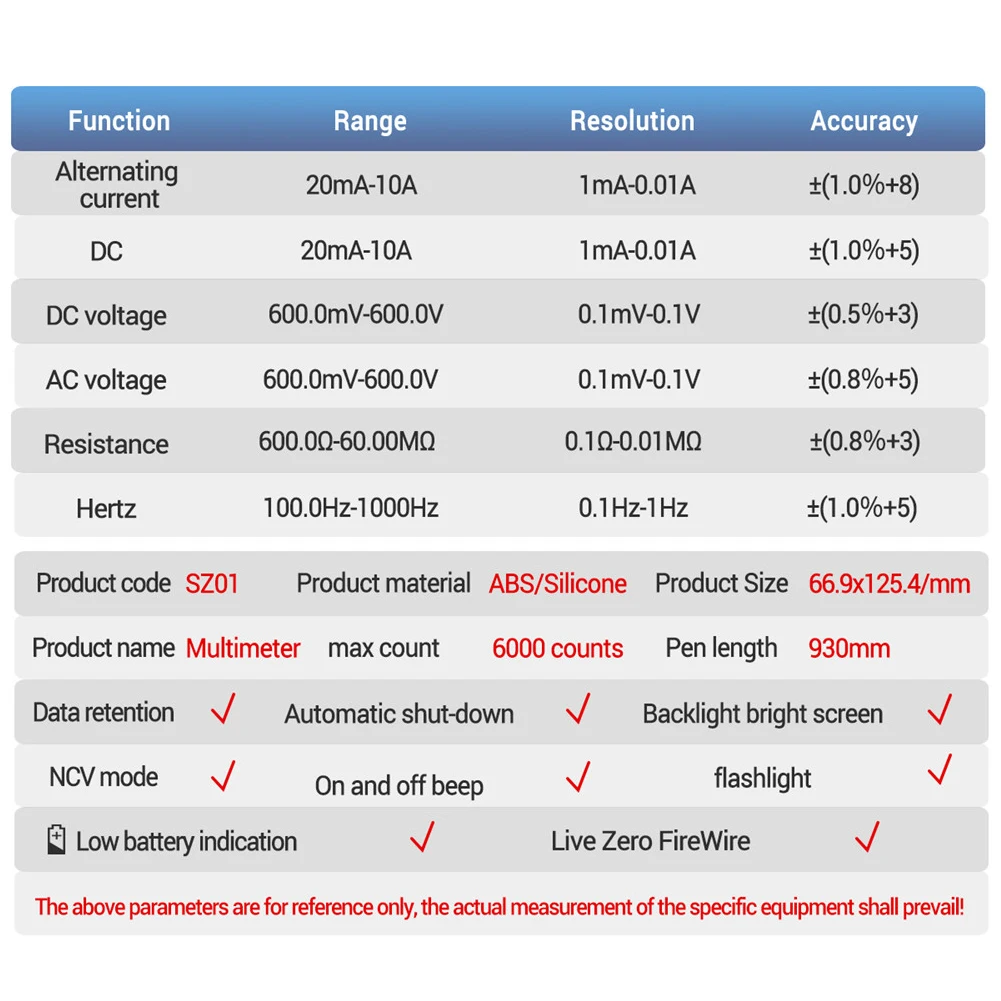

#SZ01
*1. Model: SZ01
*2. AC Current: 600.0mA/10A
*3. DC Current: 600.0mA/10A
*4. DC Voltage: 600.0mV/6.000V/60.00V/600.0V
*5. AC Voltage: 600.0mV/6.000V/60.00V/600.0V
*6. Line on-off Test: 1Ω
*7. Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
*8. Diode Test: 1V
*9. NCV: YES
*10. Frequency: 100Hz/1000Hz;
*11. Backlight: yes

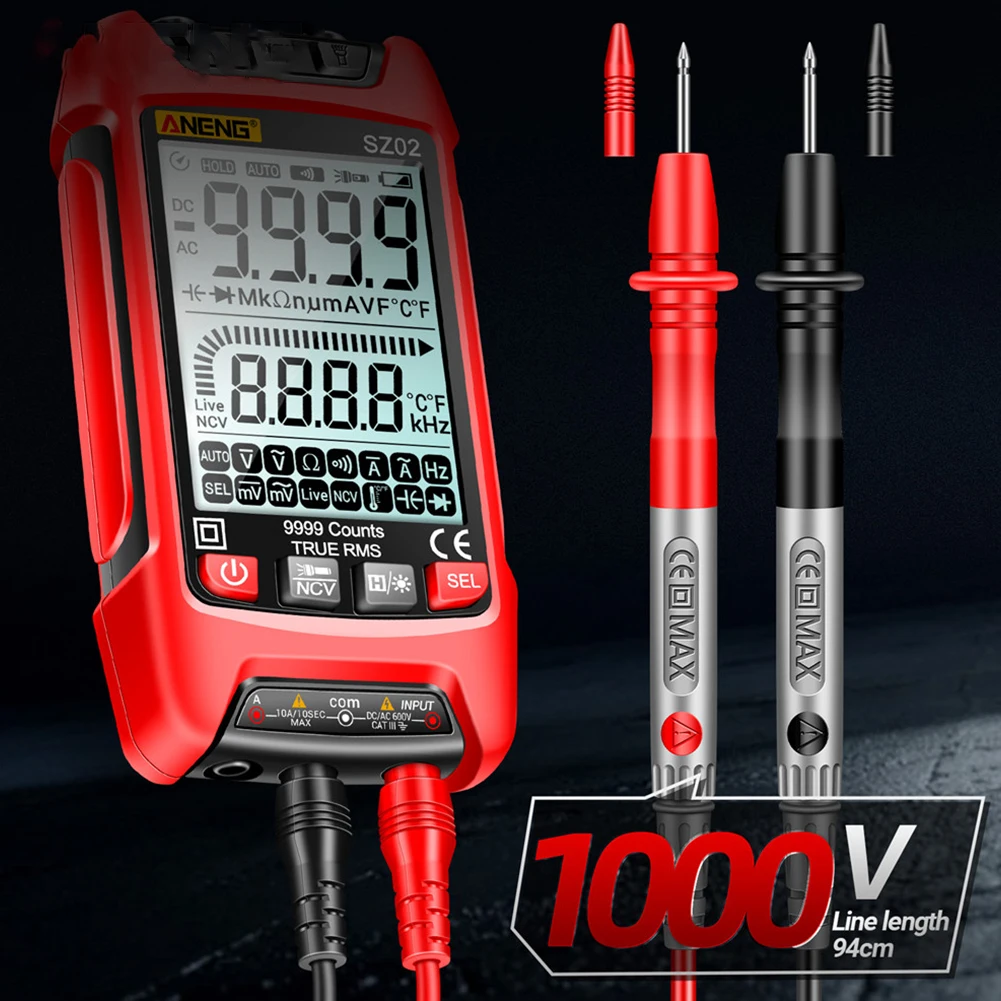

#SZ02
*1. Model: SZ02
*2. AC Current: 999.9mA/10A
*3. DC Current: 999.9mA/10A
*4. DC Voltage: 600.0mV/9.999V/99.99V/999.9V
*5. AC Voltage: 600.0mV/9.999V/99.99V/999.9V
*6. Line on-off Test: 1Ω
*7. Resistance: 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
