- Brand Name: BSIDE
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: Mainland China
- Model Number: A10
- Max Display:: 9999 counts.
- Display Type:: EBTN Color screen.
- DC Voltage:: 0V-600V ±(0.8%+3); Resolution: 0.001V.
- AC Voltage:: 0V-600V ±(1.2%+5); Resolution: 0.001V.
- Resistance:: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω
- Capacitance:: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF
- Frequency:: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz
- Duty Cycle:: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1%
- Diode:: Auto identify diode if less than 3.0V.
- V-Alert(non-contact voltage detection):: alarm beep sounds, LCD screen display stripe.
- Continuity:: If the resistance is less than 50Ω, the beeper sounds.
- Power:: Rechargeable 3.7 V * 1 battery (built-in)
- Size:: 113.3*54.2*22mm.
- Weight:: 102g.
Specifications:
Max Display: 9999 counts.
True RMS
Display Type: EBTN Color screen.

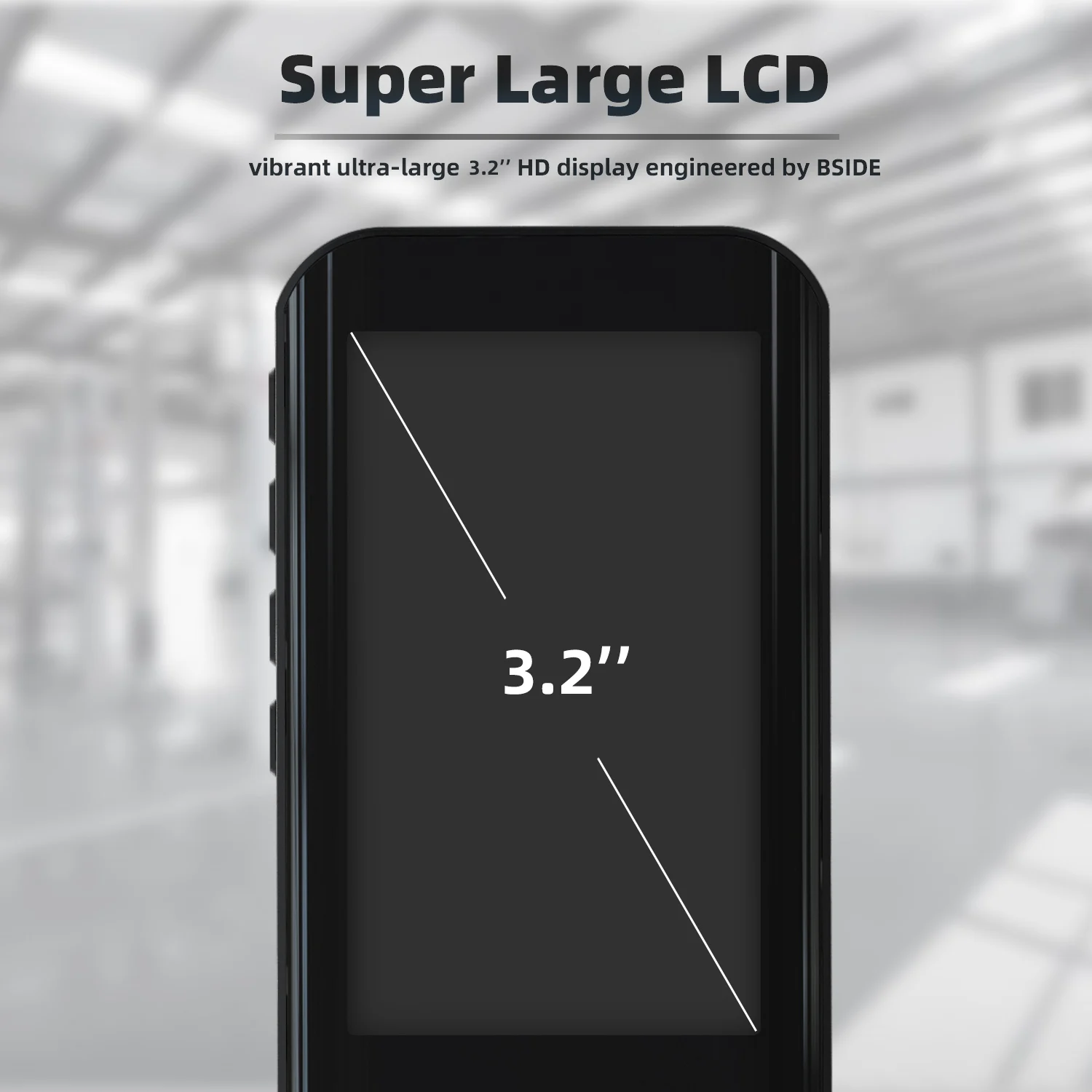

Screen: 3.2 inch.
DC Voltage: 0V-600V ±(0.8%+3); Resolution: 0.001V.
AC Voltage: 0V-600V ±(1.2%+5); Resolution: 0.001V.
Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω
Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF
Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz
Duty Cycle: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1%
Diode: Auto identify diode if less than 3.0V.
V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 50Ω, the beeper sounds.
Power: Rechargeable 3.7 V * 1 battery (built-in)
Size: 113.3*54.2*22mm.
Weight: 102g.
Package Includes:
1 * A10 Ultra-portable Multimeter. 1 * Test Lead.
1 * Type-C Charg Cable. 1 * Lithium Battery (Built-in)
1 * EVA portable cloth bag. 1 * User Manual.
1 * Packing Box. 1 * Quality Certificate
Tool Kits
A10 Ultra-portable smart multimeter + X1 3-in-1 smart voltage detector
